Jigsaw Puzzle Die Cutting Press Machine

Jigsaw Puzzle Die Cutting Press Machine

Use Range
Our servo jigsaw puzzle machine for 1000-3000pcs puzzles, can cut materials such as paper cardboard, polywood and plastic trimming and glue. Edge smooth and closely without burrs. It is widely used for gifts, home decorations and educational toys. It gives great space for your own creations on jigsaw puzzles.

Detail

Jigsaw Puzzle Machine Video

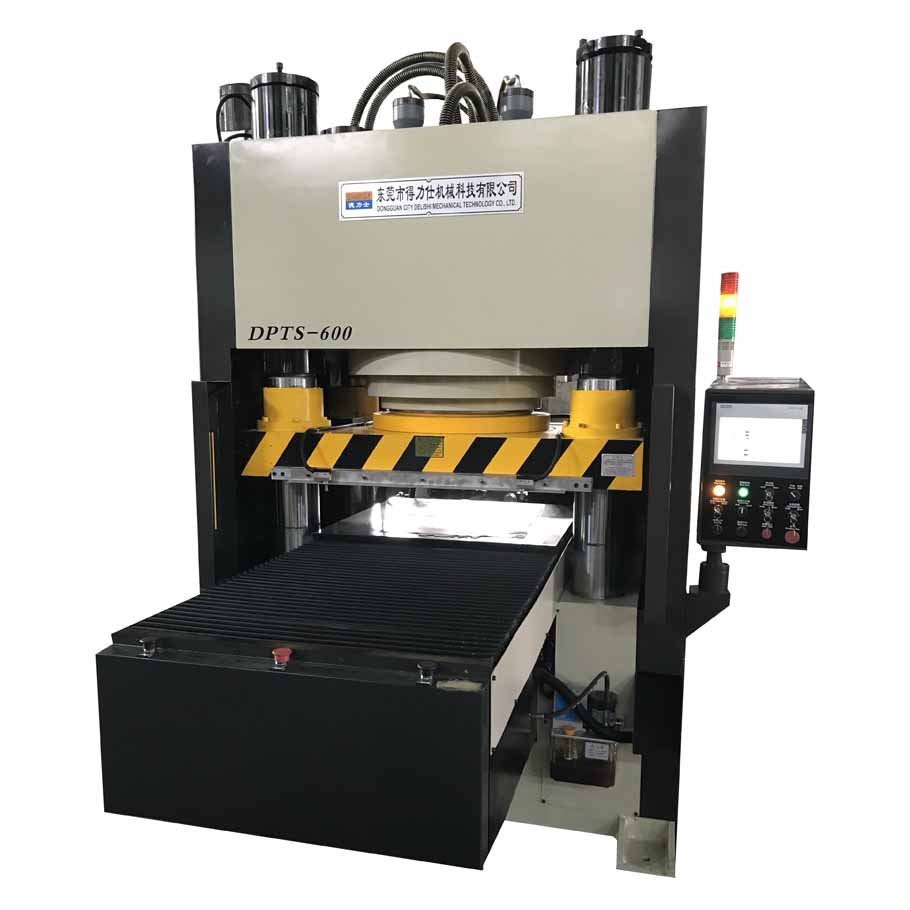

Jigsaw Puzzle Die Cutting Machine

Jigsaw Puzzle Die Cutting Machine

The following are advantages of Jigsaw Puzzle Die Cutting Press

1. Fast speed, high precision, easy operation;
2. With six side protection;
3. Compact and good appearance.
4. Pressure stability,has no phenomenon of cutting and rough edge.Because the cutting is balanced and accurate. which can ensure the using life of cutting board.

5. All lubrication system are provided by the manual pump for lubricating oil,reducing the wear,and extending the using life of the machine.
6. When the cutting operation from hte upper board pressed it can be cut slowly

7. Automatically,which makes no dimension error between them.

8. Optimize structure when designed and do not worry about oil leaks.
9. Make the knife mould set quickly and accuracy,easy to learn.
10. Low motor power and low energy consumption.
11. Equipped with a safety device(according to customer’ requirements.
12. It is suitable for all kinds of materials except for metal to cut and press.



Our servo jigsaw puzzle machine for 1000-3000pcs puzzles, can cut materials such as paper cardboard, plywood and plastic trimming and glue. Edge smooth and closely without burrs. It is widely used for gifts, home decorations and educational toys. It gives great space for your own creations on jigsaw puzzles.

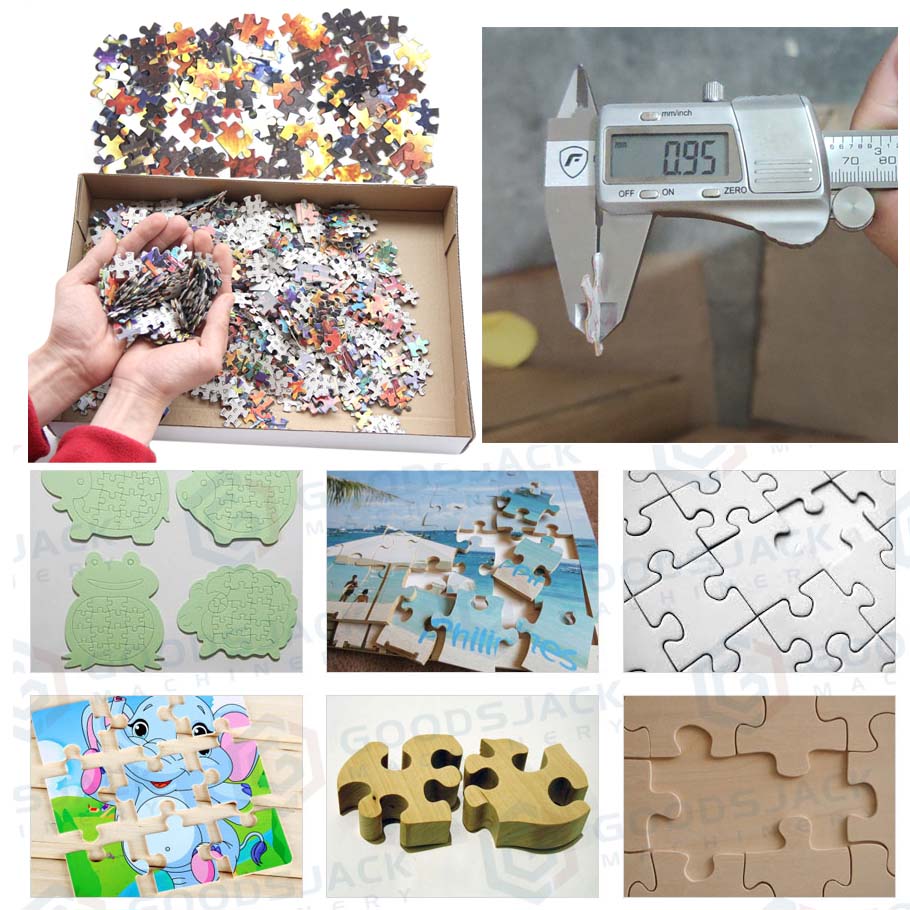

Jigsaw Puzzle Die Cutting Machine Samples




Model Units Specifications
DPT-300 DPT-500 DPT-1000
Main cylinder capacity Ton 300 500 1000
System pressure Mpa 240 250 250
Main cylinder stroke mm 150(185) 150(185) 150
Open height mm 165(200) 165(200) 170
Height of fixed working table mm 1099(1114) 1284(1319) 1700
Size of working table L-R mm 800 900 1100
F-B mm 900 1050 1440
Speeds of main cylinder Fast forward mm/s 135 135 110
Working mm/s 6 4 43
Fast backward mm/s 125 125 100
Over all dimension L-R mm 1580 1600 2200
F-B mm 1705 1865 1900
H mm 1855(1890) 2145(2180) 2930
Main motor power kw 11 15 30
Weight(Approx) kg 7600(7800) 9100(9500) 11670

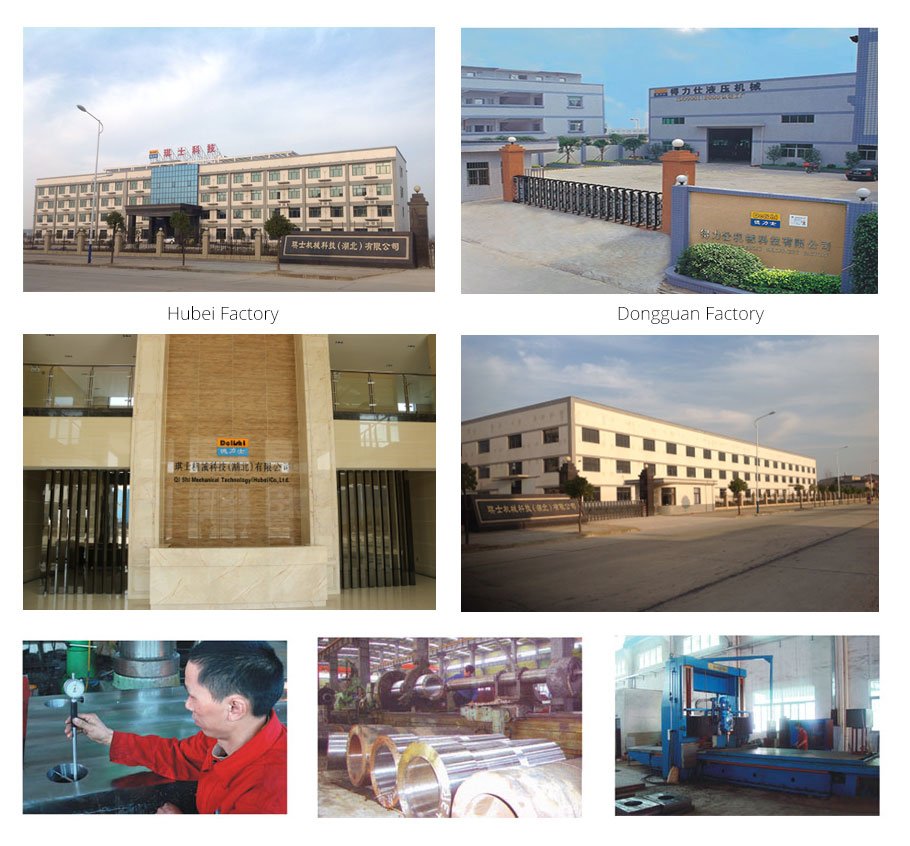

hydraulic press machine manufacturer
