Single Cylinder Hydraulic Press

Single Cylinder Hydraulic Press

Use Range
Fast Single Action Hydraulic Press,
Forming of spectacle parts, lock parts, metal hardware, pressing assembly of electronic connectors,electric components and rotor & stator of motor etc.

Detail

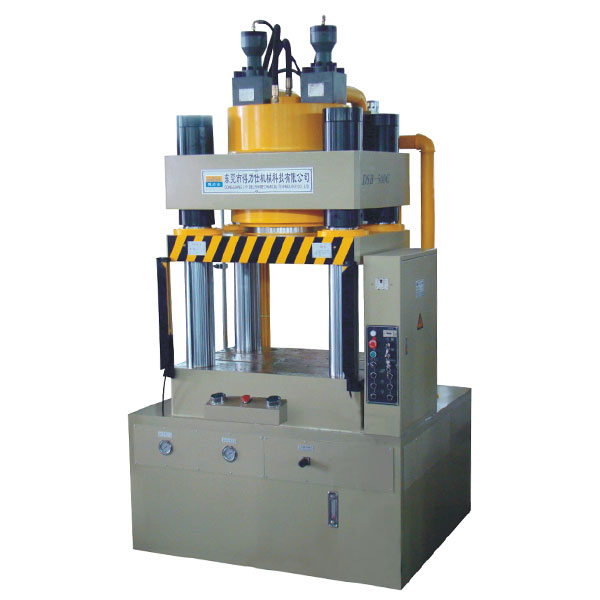

Single Cylinder Hydraulic Press Machine

Single Cylinder Hydraulic Press Machine

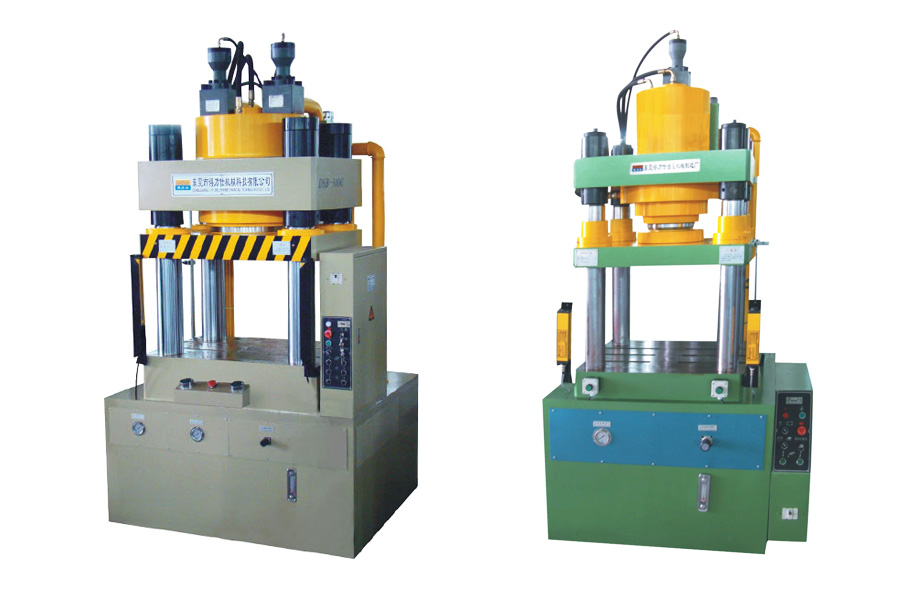

DSB-A Cylinder Half Type Single Movement Hydraulic Press

Single Cylinder Hydraulic Press Machinery


1. Faster approaching and returning speeds by inner cylinder allow very high production efficiency.

2. A very simple and convenient adjusting device makes ram or upper working table pressing at any position within its whole stroke and the length of approaching and pressing strokes can be verb easily adjusted.

3. Pressing capacity can be adjusted according to applied pressing technology.



1. Stamping, forming, shallow, drawing and pressing assembly etc.

2. Forming spectacle parts, lock parts, metal hardware, pressing assembly of electronic connectors, electric components and rotor & stator of motor etc.

Single Cylinder Hydraulic Press Machine Products


Main specifications Units Specifications
DSB-10 DSB-20 DSB-50 DSB-100 DSB-200 DSB-300 DSB-500 DSB-800 DSB-1000
Main cylinder capacity ton 10 20 50 100 200 300 500 800 1000
System pressure Mpa 13 13 13 20 25 25 25 250 25
Main cylinder stroke mm 250 300 300 200 150 150 150 160 250
Open height mm 400 450 450 450 450 450 500 700 650
Height of fixed working table mm 820 820 820 850 850 900 1000 1100 1100
Sizes of main working table (L-R) mm 400 400 450 450 500 550 700 850 950
(F-B) mm 400 400 450 450 500 650 800 950 1050
Speeds of main cylinder Fast forward mm/s 150 130 100 100 100 135 110 110 110
Working mm/s 30 20 15 15 15 5 4 3 2.5
Fast backward mm/s 150 130 100 100 100 100 100 100 100
Motor power kw 2.2 3 4 5.5 5.5 7.5 15 18.5 22
Weight(Approx) kg 820 980 1540 2680 3760 4400 7200 13500 17500

Remarks: Final specifications are subject to contract or agreement.
