Puzzle Hydraulic Press

Puzzle Hydraulic Press

Use Range
Goodsjack puzzle hydraulic press was mainy applied in cardboard and wooden puzzles. All puzzle hydraulic press inquire, please contact us.
Pressure stability,have no phenomenon of cutting and rough edge.Because the cutting is balanced and accurancy.which can ensure the using life of cutting board.

Inquiry

Detail

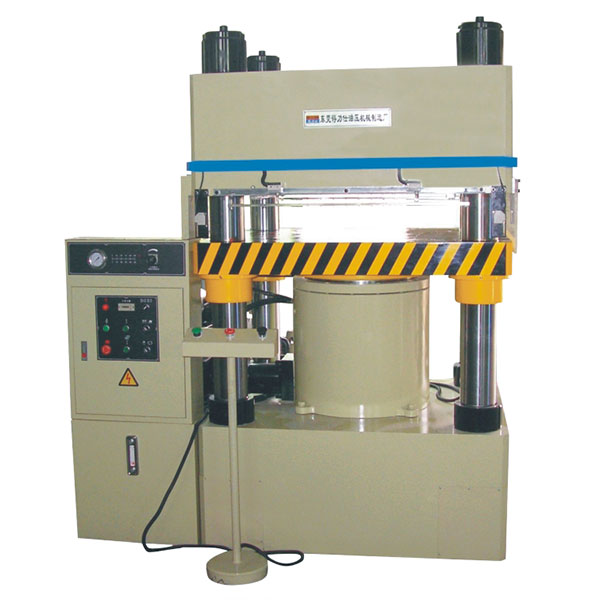

Puzzle Hydraulic Press

Wood Puzzle Hydraulic Press


1. Fast speed, high precision, easy operation;
2. With six side protection;
3. Compact and good appearance.
4. Pressure stability,have no phenomenon of cutting and rough edge.Because the cutting is balanced and accurancy.which can ensure the using life of cutting board.
5. All lubrication system is provided by the manual pump for lubricating oil,reducingthe wear,and extending the using life of the machine.
6. When the cutting operation from upper board pressed it can be cutted slow
7. Automatically,which make no dimension error between them.
8. Opitimize structure when designed and do not worry about oil leak.
9. Make the knife mould set quickly and accuracy,easy to learn.
10. Low motor power and low energy consumption.
11. Equipped with safety device(according to customer’requirments) .
12. It is suitable for all kinds of materials except for metal to cut and press.

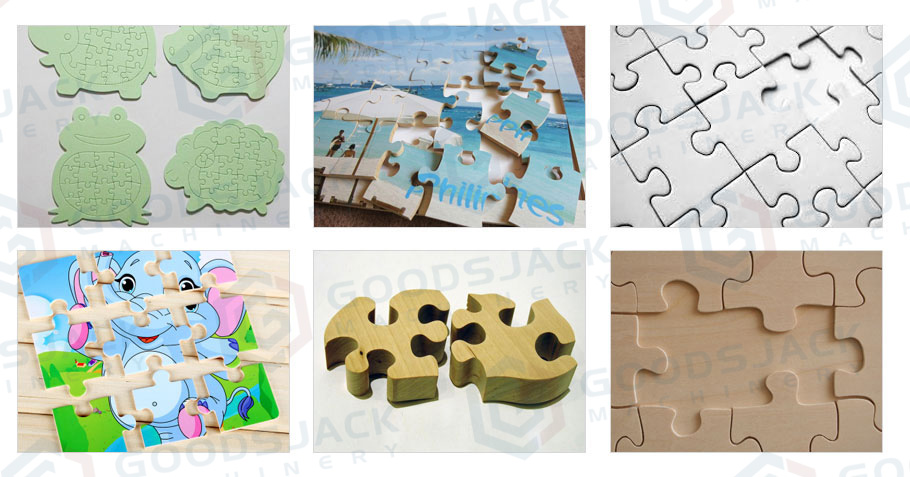

1. For wood and paper educational products

2. Plastic trimming and glue.

Puzzle Hydraulic Press



Model Units Specifications
DPT-300 DPT-500 DPT-1000
Main cylinder capacity Ton 300 500 1000
System pressure Mpa 240 250 250
Main cylinder stroke mm 150(185) 150(185) 150
Open height mm 165(200) 165(200) 170
Height of fixed working table mm 1099(1114) 1284(1319) 1700
Size of working table L-R mm 800 900 1100
F-B mm 900 1050 1440
Speeds of main cylinder Fast forward mm/s 135 135 110
Working mm/s 6 4 43
Fast backward mm/s 125 125 100
Over all dimension L-R mm 1580 1600 2200
F-B mm 1705 1865 1900
H mm 1855(1890) 2145(2180) 2930
Main motor power kw 11 15 30
Weight(Approx) kg 7600(7800) 9100(9500) 11670
