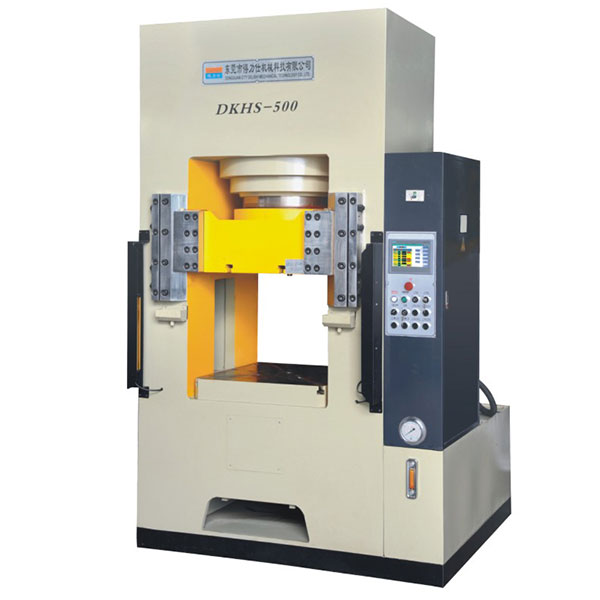

Servo Hydraulic Cold Extrusion Press Machine

Use Range：
The Servo Cold Extrusion Hydraulic Press Machine was mainly applied in to metal materials, cold forging, warm forging and extrusion molding, and punching mark, light stretching, cut edges and other materials. Such as cars, motorcycles, bicycles, cell phone case, LED radiator and heat sink, watchcase, hardware tools.

Capacity: usually 100-1500ton,according to customers' requirements
Brand Name: GOODSJACK
Model number: GSJ-DKHS
Product Type: Servo Cold Extrusion
Payment Terms: T/T,L/C
Package: Wrapping film and metal packing
Minimum Order: 1 set
Delivery Time: 45-60 working days
Place of origin: China
Price Terms: FOB,C&F,CIF

Detail

GoodsJack hydraulic press machine

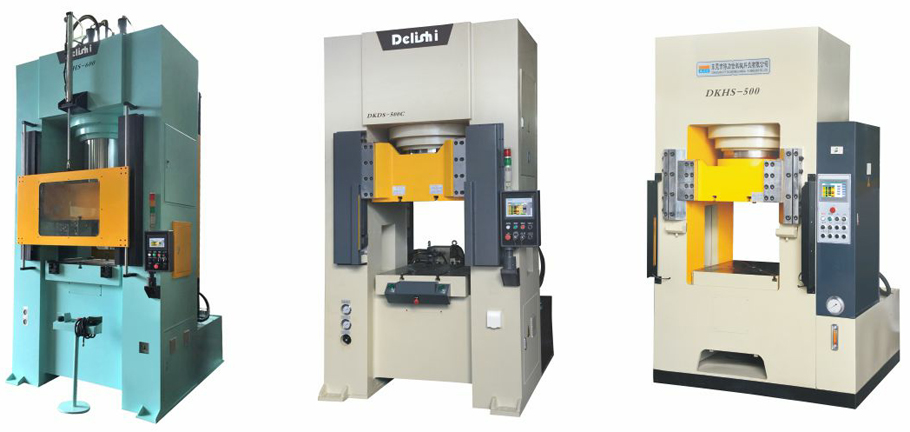

guide cold forging press

Hydraulic Press Machine make products

1. Mainly applies to metal materials,cold forging,warm forging and extrusion molding,and punching mark,light stretching,cut edges and other materials. Such as cars, motorcycles, bicycles, cell phone case, LED radiators, watchcases, hardware tools.
2. Especially suitable for the precision molding parts.

Goodsjack 800 tons cold forging press is pressing car universal joints Goodsjack 650tons cold forging press is pressing LED heat sink

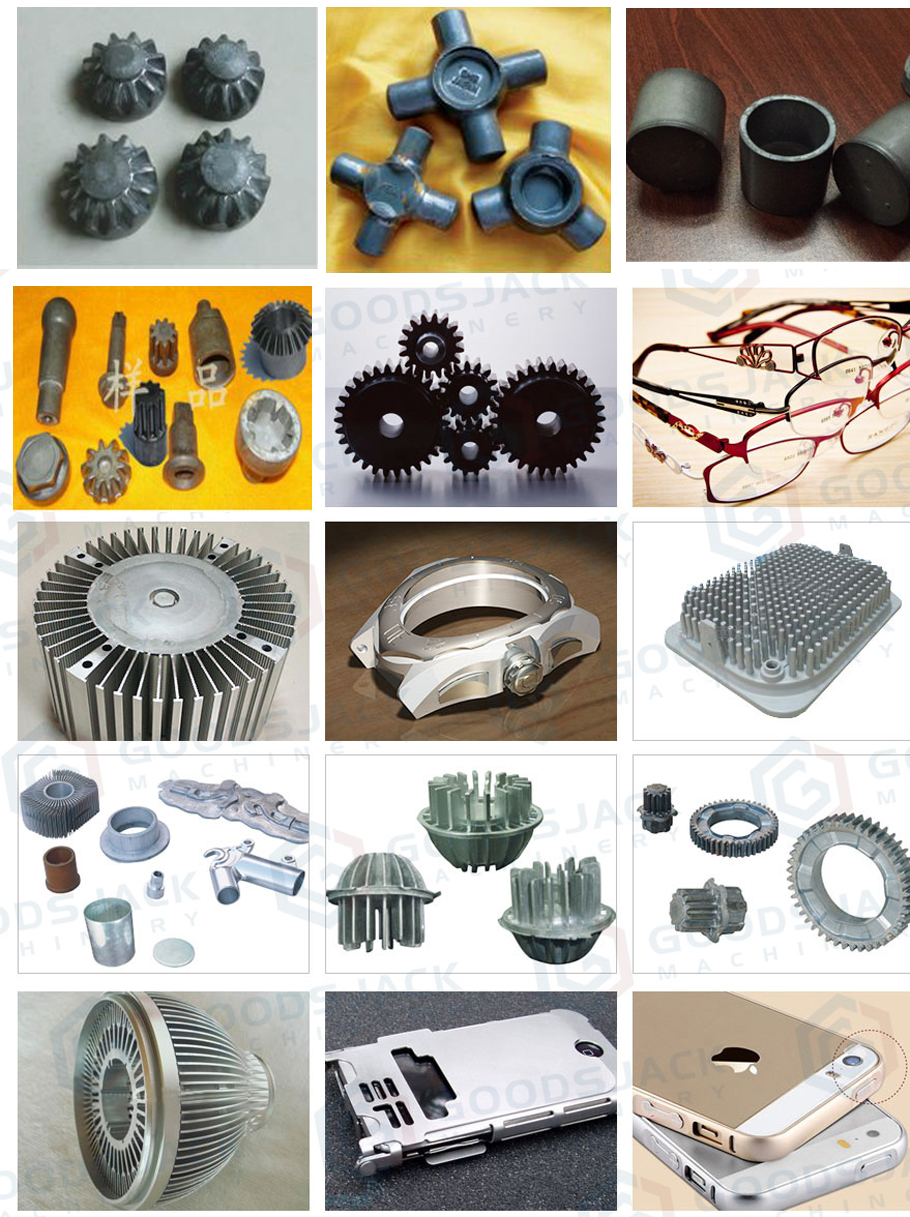

servo guide cold extrusion press machine-samples

Model		Units	Specifications
Model		Units	DKHS-100	DKHS-200	DKHS-300	DKHS-400	DKHS-500	DKHS-650	DKHS-800	DKHS-1000	DKHS-1200	DKHS-1500
master cylinder	rated capacity	ton	100	200	300	400	500	650	800	1000	1200	1500
	stroke	mm	300	400	400	400	500	500	500	500	500	400
	fast dowm speed	mm/s	180	160	160	230	230	170	190	210	190	220
	coining speed	mm/s	7-15	8-17	5-12	7-18	8-16	5-12	5-12	8-16	6-15	3-13
	return speed	mm/s	170	150	130	210	200	170	180	210	160	210
system pressure		bar	240	235	240	240	250	248	240	240	250	240
knock-out cyinder	ejecting force	ton	15	30	30	40	40	50	50	60	80	100
	stroke	mm	200	200	200	200	250	250	250	250	250	200
	mandrel diameter	mm	40	50	50	60	60	80	80	80	80	100
open heigh(slide to bolster)		mm	600	700	700	700	800	900	1000	1100	1200	1050
working table size	L-R	mm	500	700	700	800	800	1000	1000	1200	1300	1400
working table size	F-B	mm	500	700	700	800	800	1000	1100	1200	1300	1400
main motor power		KW	8.6	16	23.6	34.6	34.6	37	60	74	90	110
over all dimension	L-R	mm	1250	1680	1680	2600	2650	2940	3000	3660	3800	4150
	F-B	mm	1430	1780	1780	2100	2100	2100	2300	2450	2500	2680
	H	mm	2850	3480	3500	3700	4050	4100	4320	4560	4720	4820

The machine capacity from 100 tons to 1500 tons, if you want to custom hydraulic press design, please contact us with email:[email protected], skype alice.goodsjack and whatsapp +86-13642957273.
