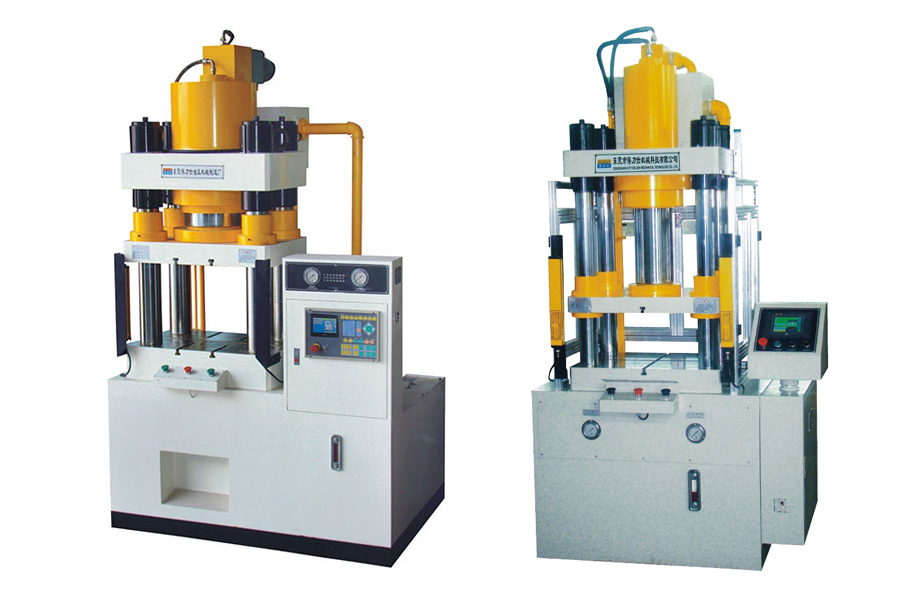

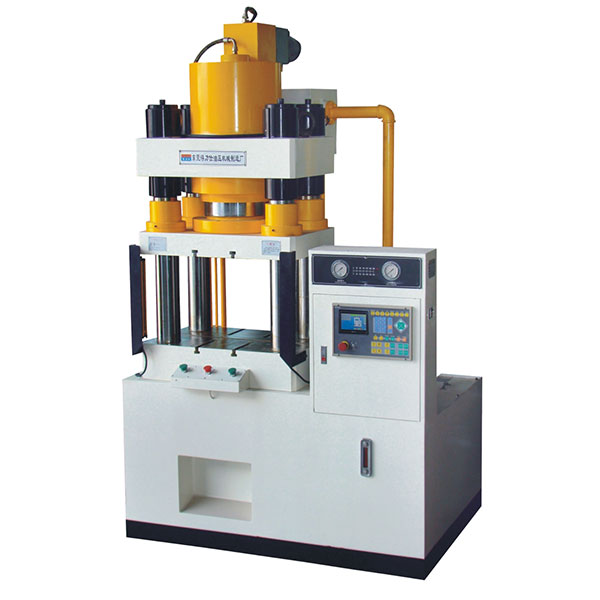

Upper-cylinder CNC Hydraulic Press
GSJ Upper Cylinder CNC Hydraulic Press, Stamping, forming, shallow, drawing and pressing assembly etc.

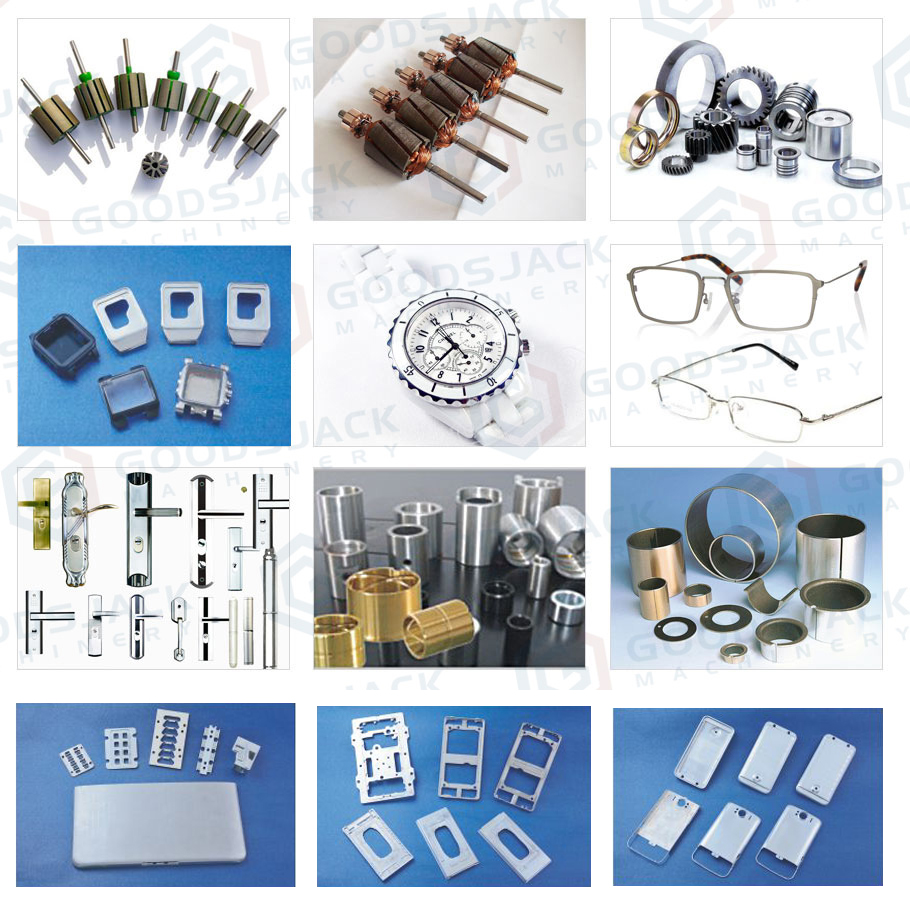

Forming of spectacle parts, lock parts, metal hardware, pressing assembly of electronic connectors, electric components and rotor & stator of motor etc.
Detail
Upper-cylinder CNC Hydraulic Press
1. Faster approaching and returning speeds by inner cylinder allow very high production efficiency.
2. A very simple and convenient adjusting device makes ram or upper working table pressing at any position within its whole stroke and the length of approaching and pressing strokes can be verb easily adjusted.
3. Pressing capacity can be adjusted according to applied pressing technology.
1. Stamping , forming , shallow , drawing and pressing assembly etc.
2. Forming of phone metal back cover, spectacle parts, lock parts, metal hardware, pressing assembly of electronic connectors, electric components and rotor & stator of motor etc.
| Model | Units | Specifications | |||||||||
| DSBS-10 | DSBS-20 | DSBS-50 | DSBS-100 | DSBS-200 | DSBS-300 | DSBS-500 | DSBS-800 | DSBS-1000 | |||
| Main cylinder capacity | ton | 10 | 20 | 50 | 100 | 200 | 300 | 500 | 800 | 1000 | |
| System pressure | Mpa | 13 | 13 | 18 | 20 | 25 | 25 | 25 | 25 | 25 | |
| Main cylinder stroke | mm | 250 | 300 | 300 | 200 | 150 | 150 | 160 | 160 | 250 | |
| Open height | mm | 400 | 450 | 450 | 450 | 450 | 450 | 500 | 700 | 650 | |
| Height of fixed working table | mm | 820 | 820 | 820 | 850 | 850 | 900 | 1000 | 1100 | 1100 | |
| Sizes of main working table |
(L-R) | mm | 400 | 400 | 450 | 450 | 500 | 550 | 700 | 850 | 950 |
| (F-B) | mm | 400 | 400 | 450 | 450 | 500 | 650 | 800 | 950 | 1050 | |
| Speeds of main cylinder |
Fast forward | mm/s | 150 | 130 | 100 | 100 | 100 | 135 | 110 | 110 | 110 |
| Working | mm/s | 30 | 20 | 15 | 15 | 15 | 5 | 4 | 3 | 2.5 | |
| Fast backward | mm/s | 150 | 130 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Motor power | kw | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 15 | 18.5 | 22 | |
| Weight(Approx) | kg | 820 | 980 | 1540 | 2680 | 3760 | 4400 | 7200 | 13500 | 17500 | |
The above parameters are for reference, ordering the contract shall prevail.

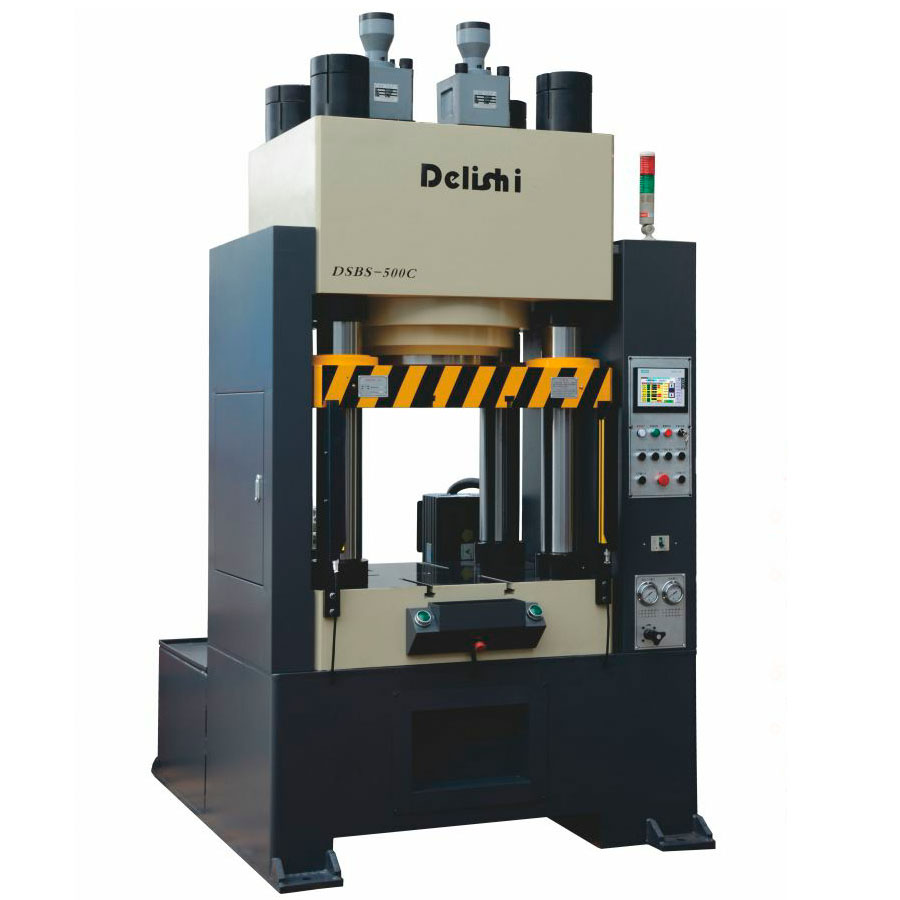

DSBS-A Cylinder Half Type Single Movement Hydraulic Press
DSBS-A series can according to customer's requirement.
