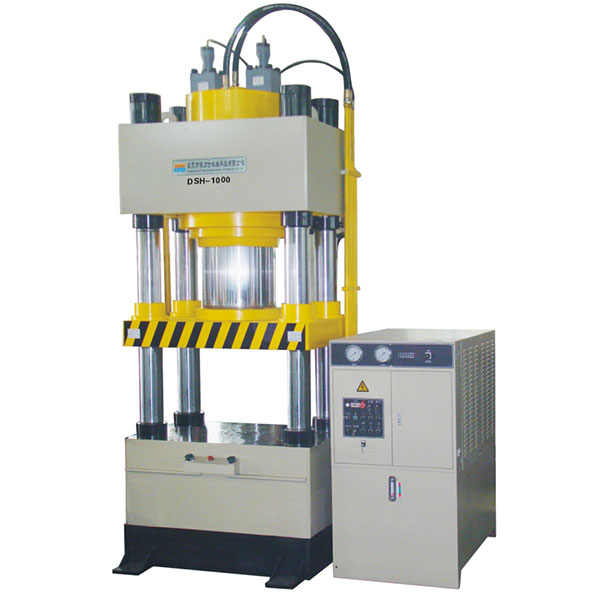

Upper-cylinder Type Cold Extrusion Hydraulic Press

Upper-cylinder Type Cold Extrusion Hydraulic Press

Use Range
Upper Cylinder Hydraulic Press, Forming Hydraulic Press.
The offered hydraulic press machines are developed utilizing quality approved material and widely finds its applications in Forming of
motorcycle spare parts,cell phone casing,LED radiator,watchband,watchcase,hardware tools,etc.

Brand Name : GOODSJACK
Model number : GSJ-DSU1000
Product Type : Servo Cold Extrusion
Payment Terms : T/T,L/C
Package : Bubble pack and wooden box
Minimum Order : 1 set
Delivery Time : 40-50 working days
Place of origin : China
Price Terms : FOB,C&F,CIF

Inquiry

Detail



1. Higher precision of the movable working table and high rigidity of the press body make this hydraulic pres.

2. Typically suitable for forming of or piece with irregular shape and required for high precision.

3. Main hydraulic cylinder is made of alloy cast steel and it's inner surface is finely grinded machining.

4. Four columns are made of alloy steel with high tensile resistance and finely grinded and electroplated with hard chrome.

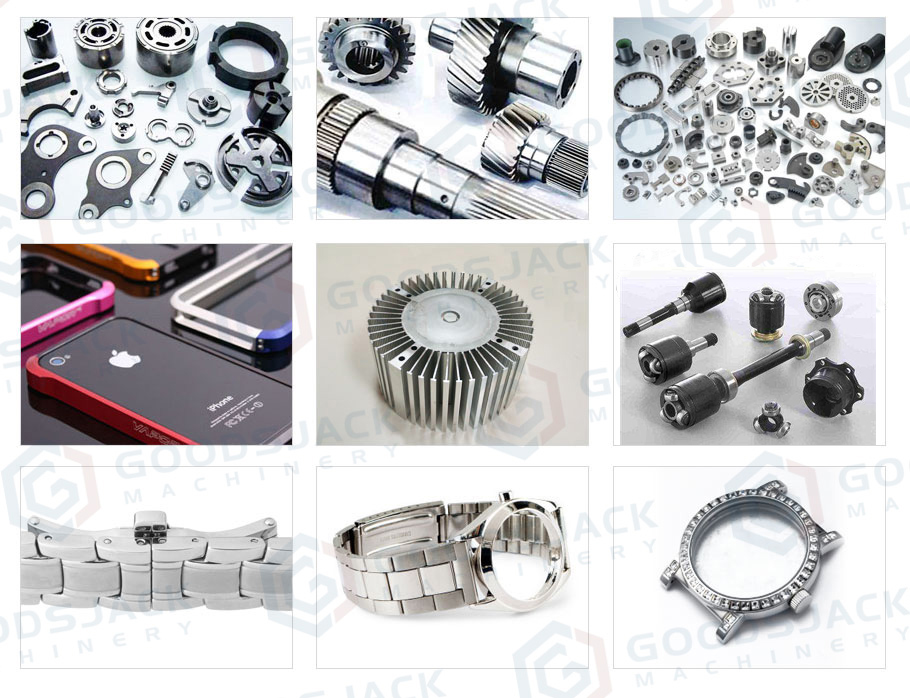

Mainly applicable to metal materials of cold extrusion,forming、shallow、drawing and blanking purposes Such as automobile,motorcycle spare parts,cell phone casing,LED radiator,watchband,watchcase,hardware tools,etc.

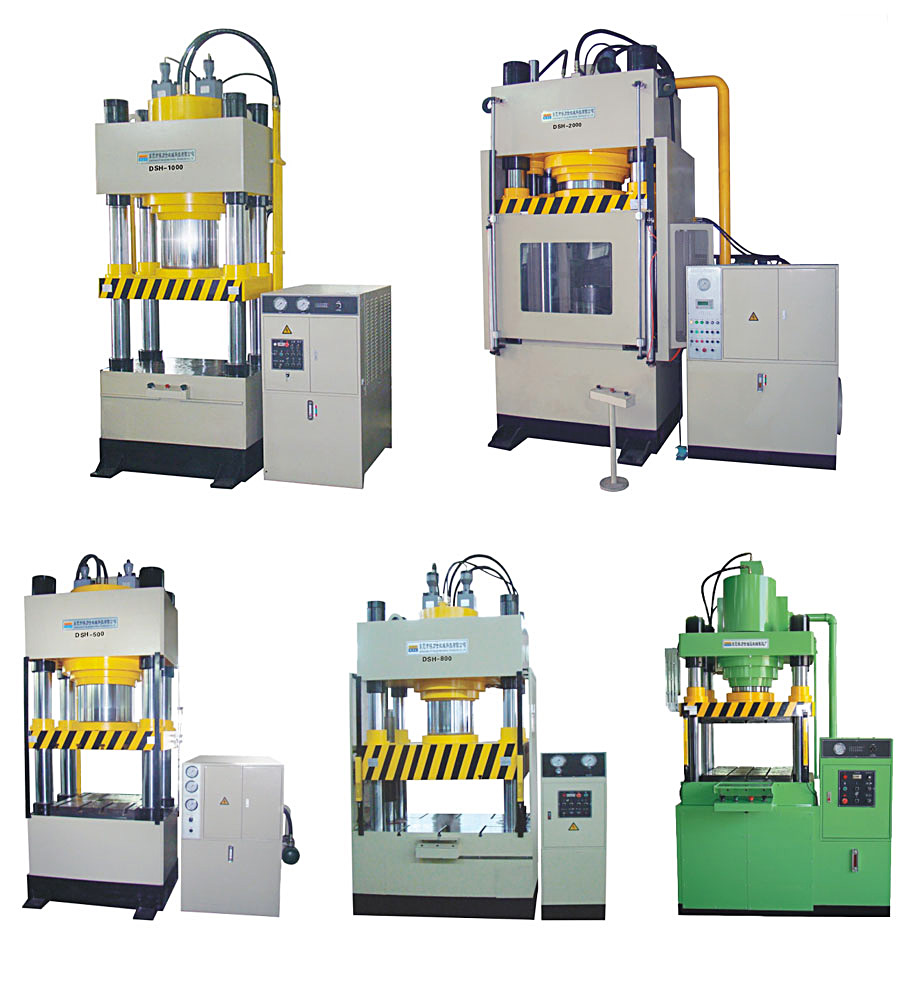

Model Units Specifications
DSH-100 DSH-150 DSH-200 DSH-300 DSH-500 DSH-650 DSH-800 DSH-1000 DSH-1200
Main
cylinder
Rated capacity ton 100 150 200 300 500 650 800 1000 1200
Silde mm 300 350 400 400 500 500 500 500 500
Fast down speed mm/s 150 160 160 160 180 165 165 165 165
Coining speed mm/s 6~15 10~24 8~9 8~12 8~15 8~16 8~16 8~16 8~15
Return speed mm/s 150 150 150 130 150 160 160 160 160
Knock-out
cyinder
Rated capacity ton 15 20 30 30 40 50 50 80 80
Silde mm 200 200 200 200 200 250 250 250 250
Rod diametcr mm Φ40 Φ40 Φ50 Φ50 Φ50 Φ80 Φ80 Φ80 Φ80
Actual area of bench L-R(Cylinder) mm 500 500 700 700 800 1000 1000 1200 1400
F-B(edge) mm 500 500 700 700 800 1000 1200 1300 1500
Open height mm 600 600 700 700 800 900 1000 1100 1200
Motor power kw 7.5 15 15 28 37 37 59 74 90
