Hydraulic 3D Open Die Forging PressUpdate：2024-03-27 Hits：41

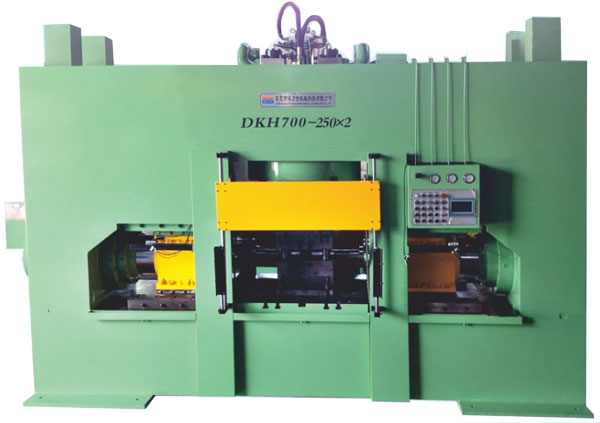

3D hot extrusion, also known as hydraulic 3D open die forging press, applies pressure from three directions at the same time to complete the one-time die forging of unified construction, aluminum alloy and other products. The hydraulic 3D open die forging press has a main cylinder and two side cylinders, which have the advantages of fast extrusion speed and high efficiency. The pressure control of the upper pressure head and the left and right pressure heads adopts proportional pressure regulation control with high precision. The left and right side cylinders use displacement sensors, closed-loop control, synchronous movement, and high precision.

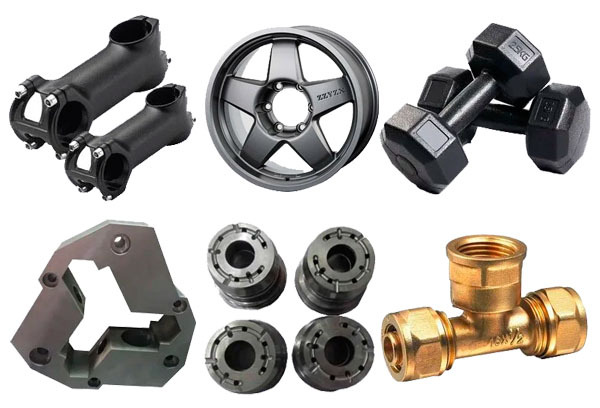

The hydraulic 3D open die forging press is suitable for various metal pressure forming processes, especially suitable for the following fields.
1. Forging of bicycle parts, including seat tubes, stems, folding tubes, etc.;
2. Hot forging and cold forging of various automobile parts;
3. Forging and forming of various sports and medical rehabilitation equipment;
4. Forging and forming of various hardware products.
