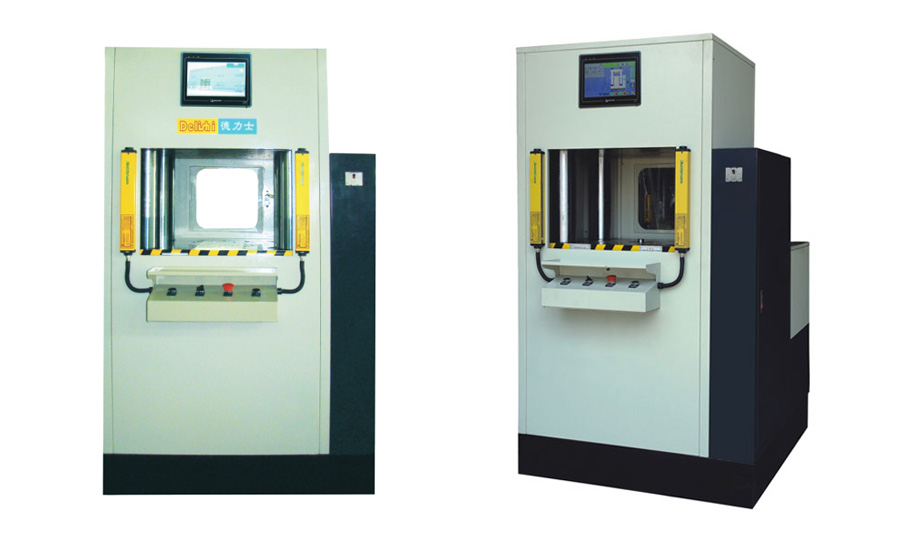

Cylinder 4-column Hydraulic Press

Cylinder 4-column Hydraulic Press

Use Range
Stamping, forming, shallow, drawing,die spotting, molding and blanking etc.of metal and none metal parts.
Well suitable for pressing and forming of watch & clock parts, spectacle parts, tableware, photo frame, metal ornaments.

Detail

4 column Hydraulic Press Machine

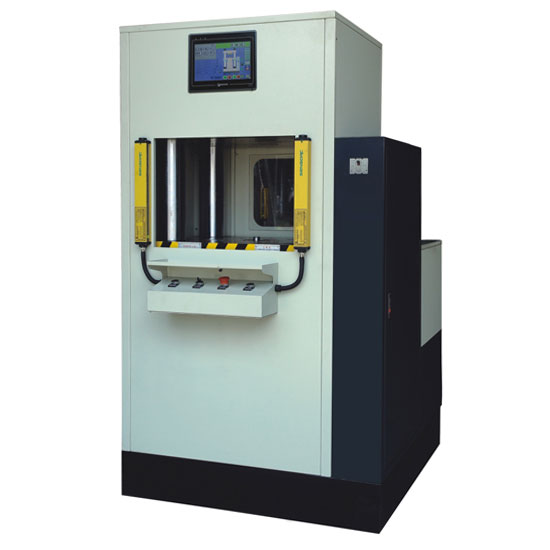

Cylinder 4-column Hydraulic Press




1. The higher precision of the movable working table and high rigidity of the press body make this press typically suitable for forming of workpiece with irregular shape and required for high precision.

2. Faster working speeds allow higher production efficiency.

3. The main hydraulic cylinder is made of alloy cast steel and its inner surface is a finely grinded machine.

4. Four columns are made of alloy steel with high tensile resistance and finely grinded and electroplated with hard chrome.

5. The lower cylinder design makes a more compact overall dimension of the machine.




1. Stamping, forming, shallow, drawing, die spotting, molding and blanking etc.of metal and none metal parts.

2. Well suitable for pressing and forming of watch & clock parts , spectacle parts , tableware , photo frame , metal ornaments.

four column hydraulic press samples



Model Units Specifications
DSAS-100 DSAS-150 DSAS-200 DSAS-300 DSAS-500 DSAS-1000 DSAS-1500 DSAS-2000
main cylinder capacity ton 100 150 200 300 500 1000 1500 2000
system pressure capacity Mpa 20 22 22 24 25 25 25 25
main cylinder of working table mm 110 110 150 150 150 150 160 160
open height mm 380 350 400 400 450 600 650 700
approaching speed of working table mm/s 180 180 135 135 100 90 90 80
returning speed of working table mm/s 150 150 100 100 90 80 80 75
size of working table L-R mm 15 20 30 30 40 50 50 8080
F-B mm 400 450 450 550 650 9000 1100 1350
Over all dimension L-R mm 1140 1200 1320 1460 1630 2450 1680 2400
F-B mm 980 1140 1340 1340 1510 1700 1400 2600
H mm 1400 1540 1630 1725 1990 2670 3100 3300
main motor power kw 4 5.5 5.5 7.5 15 18.5 22 30
Machine weight (reference) kg 2200 2650 2800 3800 5800 9500 23000 35000
