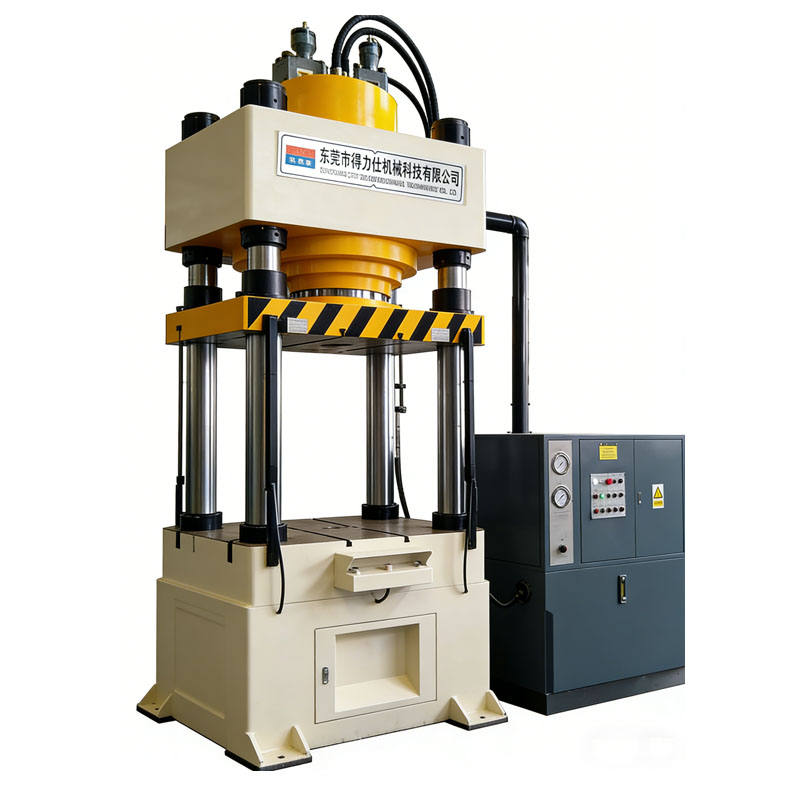

Servo Cold Forging Press Machine
Stamping,forming,shallow,drawing and pressing assembly etc.
Forming of spectacle parts,lock parts,metal hardware,pressing assembly of electronic connectors etc. Brand Name : GOODSJACK
Model number : GSJ-DSH
Product Type : Servo Cold Forging Press Machine
Payment Terms : T/T,30% deposit,full payment before shipping.
Package : Standard / Metal Packaging
Minimum Order : 1 set
Delivery Time : 30-45 working days
Place of origin : China
Price Terms : FOB,C&F,CIF
Detail
Advantages of servo cold forging press machine as following:
1. The frame and movable table have high guiding precision, good rigidity and strong lateral resistance, and are especially suitable for suppressing asymmetric products;
2. The oil cylinder adopts integral forging and precision grinding, and has high reliability under high pressure.
3. The four columns are made of high-strength materials, the surface is hard chrome plated, and the wear resistance is good.
4. The extrusion speed is fast, and the upper and lower discharge cylinders can be installed, which is suitable for the cold extrusion product return requirements.
| Model | Units | Specifications | |||||||||
| DSH-100 | DSH-150 | DSH-200 | DSH-300 | DSH-500 | DSH-650 | DSH-800 | DSH-1000 | DSH-1200 | |||
| Main cylinder | Rated capacity | ton | 100 | 150 | 200 | 300 | 500 | 650 | 800 | 1000 | 1200 |
| Stroke | mm | 300 | 350 | 400 | 400 | 500 | 500 | 500 | 500 | 500 | |
| Fast down speed | mm/s | 150 | 160 | 160 | 160 | 180 | 165 | 165 | 165 | 165 | |
| Coining speed | mm/s | 6～15 | 10～24 | 8～9 | 8～12 | 8～15 | 8～16 | 8～16 | 8～16 | 8～15 | |
| Return speed | mm/s | 150 | 150 | 150 | 130 | 150 | 160 | 160 | 160 | 160 | |
| Knock-out cylinder | Rated capacity | ton | 15 | 20 | 30 | 30 | 40 | 50 | 50 | 80 | 80 |
| Slide | mm | 200 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | |
| Rod diameter | mm | Φ40 | Φ40 | Φ50 | Φ50 | Φ50 | Φ80 | Φ80 | Φ80 | Φ80 | |
| Actual area of bench | L-R（Cylinder） | mm | 500 | 500 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1400 |
| F-B（edge） | mm | 500 | 500 | 700 | 700 | 800 | 1000 | 1200 | 1300 | 1500 | |
| Open height | mm | 600 | 600 | 700 | 700 | 800 | 900 | 1000 | 1100 | 1200 | |
| Motor power | kw | 7.5 | 15 | 15 | 28 | 37 | 37 | 59 | 74 | 90 | |
Goodsjack servo cold forging press machine was mainly applicable to metal materials of cold extrusion,forming,shallow,drawing and blanking purposes.Such as automobile,motorcycle spare parts,cell phone casing,LED radiator,watchband,watchcase,hardware tools,etc.
