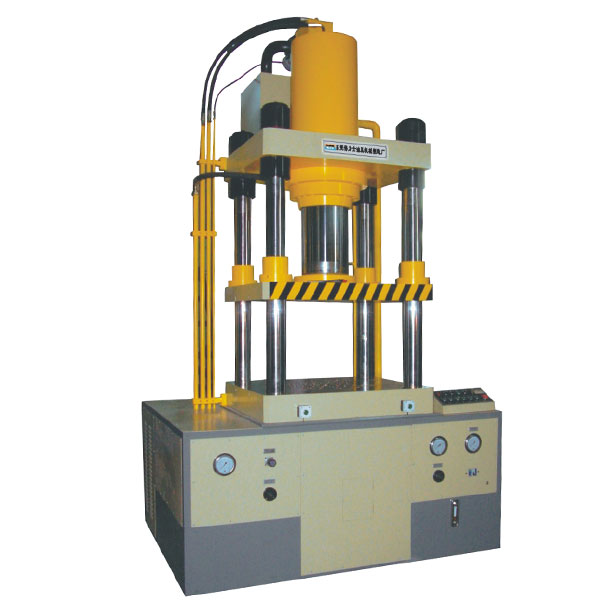

4 Column Deep Drawing Hydraulic Press

Use Range：
1. Stamping, forming, shallow, drawing, die spotting, molding and blanking etc.of metal and none metal parts.
2. Well suitable for pressing and forming of watch & clock parts, spectacle parts, tableware, photo frame, metal ornaments.
Main characteristics:
1. Ease operation: user friendly HMI, ease for setting parameters and recipe storage.
2. Control system: PLC + HMI (Siemens brand).
3. Pressing adjustment: high speed pressing setting, fulfill different pressing process technology requirement.
4. Accuracy monitoring: used for linear scale and pressure sensor to monitor the position and pressure, enhance the pressing accuracy.
5. Energy saving: high power motor fulfill high speed high pressure processing requirement, servo motor driving system can achieve energy saving 40 – 60%.

Detail

4 Column Deep Drawing Hydraulic Press

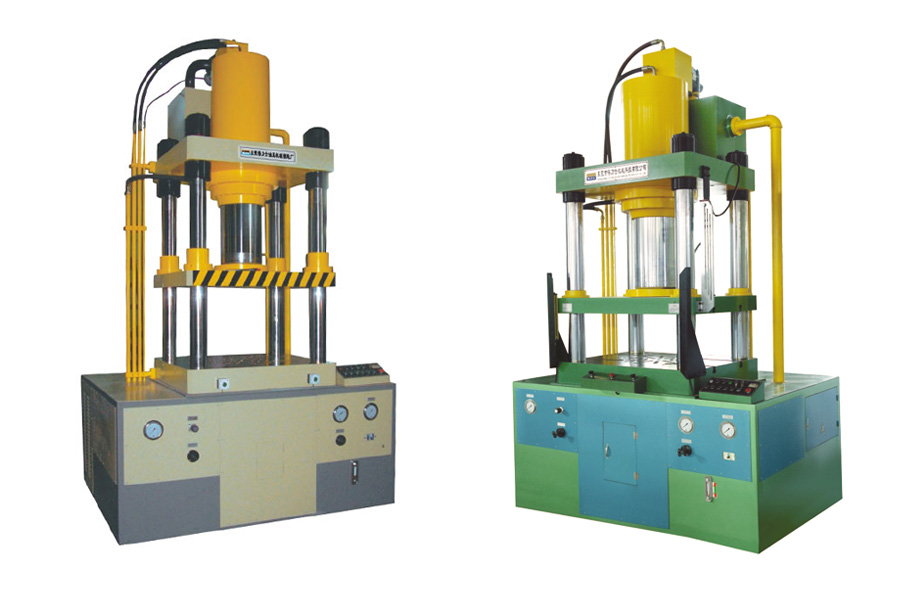

4 Column Double Action Deep Drawing Hydraulic Press

1. Advanced two way cartridge valve system ensures high reliability and much less hydraulic shock direction change.

2. Main hydraulic cylinder is made of alloy cast steel and it’s inner surface is finely grinded for life under high pressure.

3. Four columns are made of alloy steel with high tensile resistance and finely grinded and electro-plated with hard chrome.

4. Key hydraulic and electric units adopted are famous brands from Germany USA and Japan.

5. Fast approaching speed of movable working table creates higher production efficiency.

6. A hydraulic ejector is installed on movable working table for knocking out workpiece after drawing.

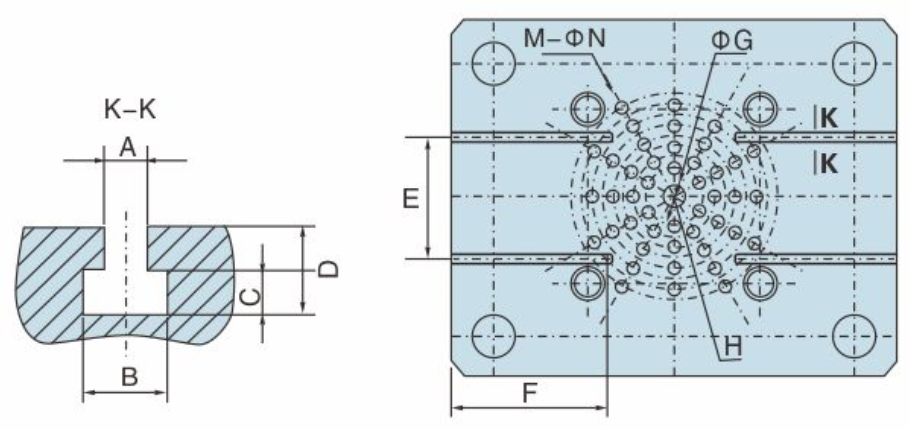

deep drawing press T shape slot Goodsjack

Above is size and distribution of working table, ejctor bar hole & T shape slot. Custom-made is accepted.

1. Deep drawing and forming of tableware, kitchenware, metal cover of electric motor, household appliances and lighting ware etc.

2. Trimming stamping deep drawing and edge-cutting of metal or none-metal workpiece.

Goodsjack 200 ton deep drawing hydraulic press for pot forming Goodsjack double acrtion deep drawing hydraulic press for food box forming deep drawing hydraulic press samples

Model		Units	Specifications
Model		Units	DSF-50	DSF-120	DSF-220	DSF-220L	DSF-275	DSF-350	DSF-350L	DSF-500	DSF-500L	DSF-600
Main cylinder	Rated capacity	Ton	35	85	160	160	200	260	260	350	350	420
Main cylinder	Max.stroke	mm	350	450	560	560	560	560	560	600	600	700
Blank holding cylinder	Rated capacity	Ton	15	35	60	60	75	90	90	150	150	180
Blank holding cylinder	Max.stroke	mm	175	200	260	260	260	600	260	300	300	350
Knocking out ejector	Rated capacity	Ton	2	3	5	5	5	5	5	10	10	10
Knocking out ejector	Max.stroke	mm	150	180	200	200	200	220	220	250	250	300
Open height		mm	600	730	900	1000	900	900	900	1000	1200	1500
Height of fixed working table		mm	990	1055	1080	1100	1100	1200	1200	1550	1600	1700
Approaching speed of M.W.T.		mm/s	195	220	210	210	210	200	200	210	210	190
Drawing speed of M.W.T.		mm/s	25	20	20	20	19	17	17	18	18	14
Returning speed of M.W.T.		mm/s	180	220	200	200	200	165	165	190	190	180
Ascending speed of blank holding cylinder		mm/s	120	50	120	120	115	160	160	85	85	75
Working table size available	(L-R)	mm	500	500	710	900	800	900	1100	1050	1250	1400
Working table size available	(F-B)	mm	550	600	870	1100	900	1000	1250	1200	1500	1600
Over all dimension	(L-R)	mm	1750	1990	20900	2280	2190	2200	2400	2970	3090	3690
	(F-B)	mm	1160	1510	1500	1750	1650	1850	1850	2200	2400	2000
	(H)	mm	2550	2920	3500	3500	3600	3800	3840	4680	4800	5640
Motor power		kw	7.5	15	30	30	30	37	37	55	55	55
Weight(Approx)		kg	2280	3500	6000	6600	7500	9500	12500	16000	22000	23000
