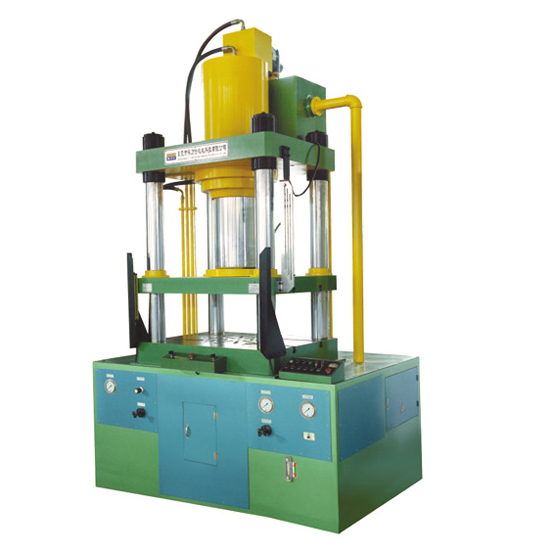

Deep Drawing Press Machine
Goodsjack Deep Drawing Press

Hydraulic Deep Drawing Press

Use Range
Double Action Hydraulic Deep Drawing Press Machine for SS Cookware

Brand Name : GOODSJACK
Model number : GSJ-DSF
Product Type : Servo deep drawing
Payment Terms : T/T,L/C
Package : Bubble pack and wooden box
Minimum Order : 1 set
Delivery Time : 30-45 working days
Place of origin : China
Price Terms : FOB,C&F,CIF

Detail

Hydraulic deep drawing press machine features

1) Advanced two way cartridge valve system ensures high reliability and much less hydraulic shock direction change.

2) The main hydraulic cylinder is made of alloy cast steel and its inner surface is finely grinded for life under high pressure.

3) Four columns are made of alloy steel with high tensile resistance and finely grinded and electro-plated with hard chrome.

4) Key hydraulic and electric units adopted are famous brands from Germany, USA and Japan.

5) Fast approaching speed of movable working table creates higher production efficiency.

6)A hydraulic ejector is installed on a movable working table for knocking out a workpiece after drawing.



Main specifications of hydraulic deep drawing press


Model Units Specificatons
DSF-50 DSF-120 DSF-220 DSF-220L DSF-275 DSF-350 DSF-350L DSF-500 DSF-500L DSF-600
Main
cylinder
Rated capacity Ton 35 85 160 160 200 260 260 350 350 420
Max.stroke mm 350 450 560 560 560 560 560 600 600 700
Blank
holding
cylinder
Rated capacity Ton 15 35 60 60 75 90 90 150 150 180
Max.stroke mm 175 200 260 260 260 260 260 300 300 350
Knocking
 out ejector
Rated capacity Ton 2 3 5 5 5 5 5 10 10 10
Max.stroke mm 150 180 200 200 200 220 220 250 250 300
Open height mm 600 730 900 1000 900 900 900 1000 1200 1500
Height of fixed
working table
mm 990 1055 1080 1100 1100 1200 1200 1550 1600 1700
Approaching speed of
M.W.T.
mm/s 195 220 210 210 210 200 200 210 210 190
Drawing speed of
M.W.T.
mm/s 25 20 20 20 19 17 17 18 18 14
Returning speed of
 M.W.T.
mm/s 180 220 200 200 200 165 165 190 190 180
Ascending speed of
 blank holding cylinder
mm/s 120 50 120 120 115 160 160 85 85 75
Working table size available (L-R) mm 500 500 710 900 800 900 1100 1050 1250 1400
(F-B) mm 550 600 870 1100 900 1000 1250 1200 1500 1600
Overa ll dimension (L-R) mm 1350 1420 2090 2280 2190 2200 2400 2970 3090 3690
(F-B) mm 1530 1680 1500 1750 1650 1850 1850 2200 2400 2000
(H) mm 2680 3100 3350 3500 3600 3800 3840 4680 4800 5640
Motor power kw 8.6 16 30 30 30 37 37 55 55 55
Weight(Approx) kg 2280 3500 6000 6600 7500 9500 12500 16000 22000 23000


Deep Drawing Hydraulic Press is mostly used in cookware industry.
